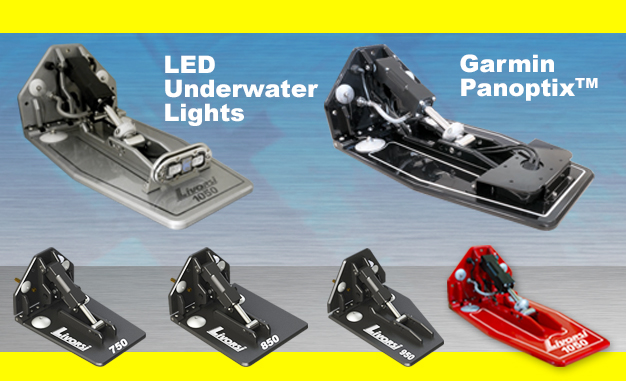

Hydraulic Billet Trim Tabs

LIVORSI HYDRAULIC BILLET TRIM TABS NOW AVAILABLE WITH A POWDER COAT FINISH AND PRIVATE LABEL OPTIONS

Now available with a powder coat finish, custom logos, and LED lights.

Please call Livorsi Marine at 847.752.2700 for more details.

Download our trim tab info sheet (4 MB PDF)

Download our logo file requirements(43 KB PDF)

Download our LED Underwater Light info sheet

Download our Transom Angle Diagram sheet

Download our Trim Tab dimensions sheet

Colors Available

TRIM TAB COLORS

Features:

  • Available with 4 or 6 inch underwater LED lights
  • Available in 11 powder coat colors and private labeling
  • Mil-Spec hard coat anodized topped with a powder coat finish to prevent corrosion
  • Models are available for performance boats, center consoles, cruisers, run-abouts, workboats and military boats
  • For use on boats 20 - 50 feet
  • Choose between LED electronic position indication (plug and play) or mechanical position indication (uses 33C cables)
  • Electronic models are compatible with NMEA 2000┬« compliant systems and Mercury VesselView┬«
  • The electronic IP68 sensor plugs directly to Livorsi's LED Position Indicator
  • Tabs are CNC machined from billet aluminum, no casting
  • Bolt patterns include Mercury and a smaller Livorsi bolt pattern for center consoles
  • All hinge pins and hardware are stainless steel
  • Adjustable transom angles without the use of special tools
  • Hydraulic cylinders are designed for 1500 PSI working pressure with dual seals
  • These cylinders may be serviced
  • Five anodes for complete saltwater protection

Trim Tab Kits include:

  • Two billet tabs
  • Two pumps
  • Mounting hardware
  • Harnesses
  • Thru hull fittings
  • Stainless steel braided hoses are purchased separately.Four hoses are needed for one kit, two per cylinder.

Stainless Steel Braided Hoses

Inverted Flare Hose Ends

Inverted Flare Hose Ends

SAE J514 37° Flare Ends

SAE J514 37 JIC FLARE HOSE ENDS
30 inchesSSBH30IN-1
36 inchesSSBH36IN-1
48 inches SSBH48IN-1
60 inches SSBH60IN-1
72 inches SSBH72IN-1
90 inches SSBH90IN-1
19 feet SSBH19FT-1
21 feet SSBH21FT-1
26 feet SSBH26FT-1
30 inches SSBH30IN
34 inches SSBH34IN
60 inches SSBH60IN
90 inches SSBH90IN
19 feet SSBH19FT
21 feet SSBH21FT
26 feet SSBH26FT

top

May also be interested in:

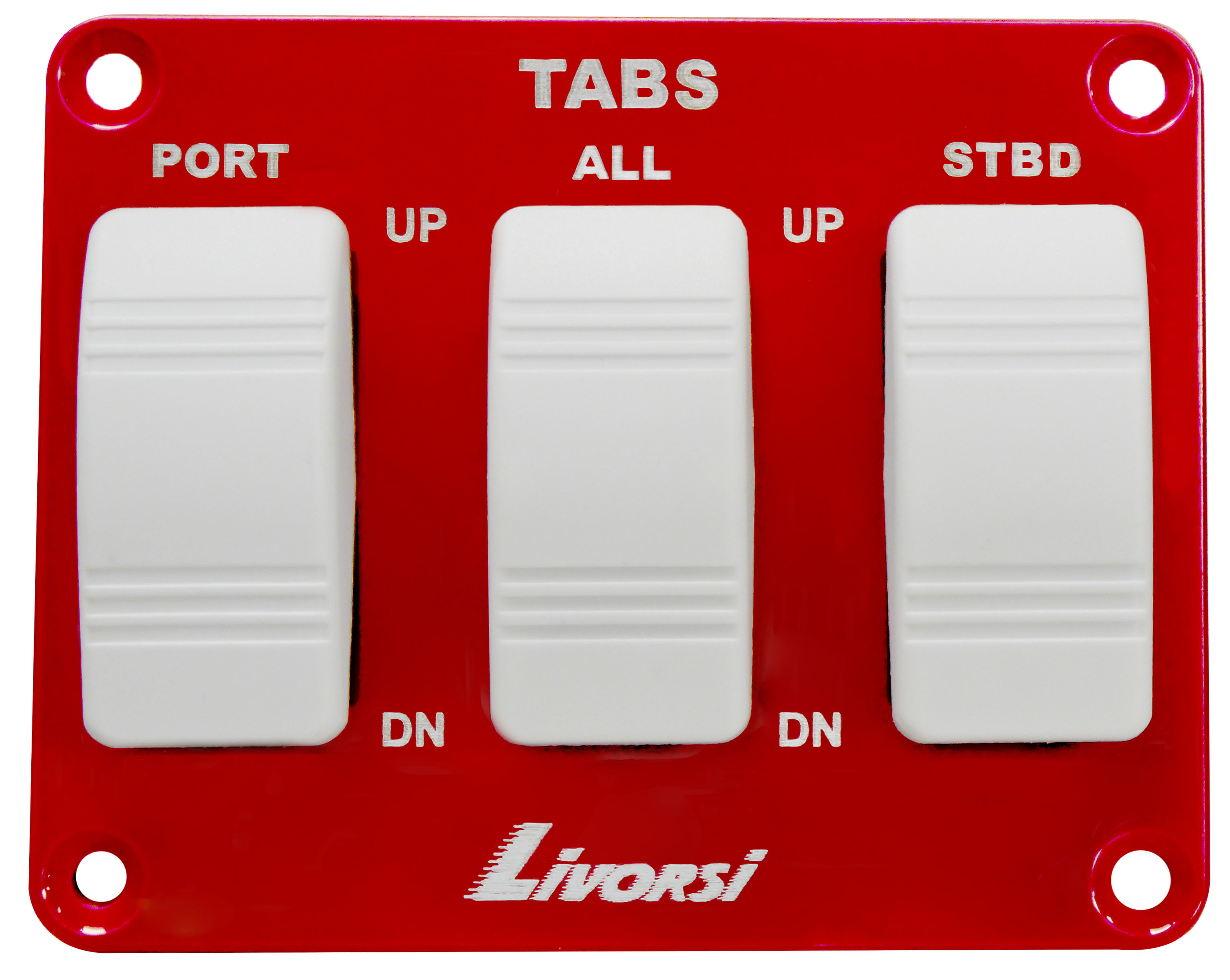

Switch Panels

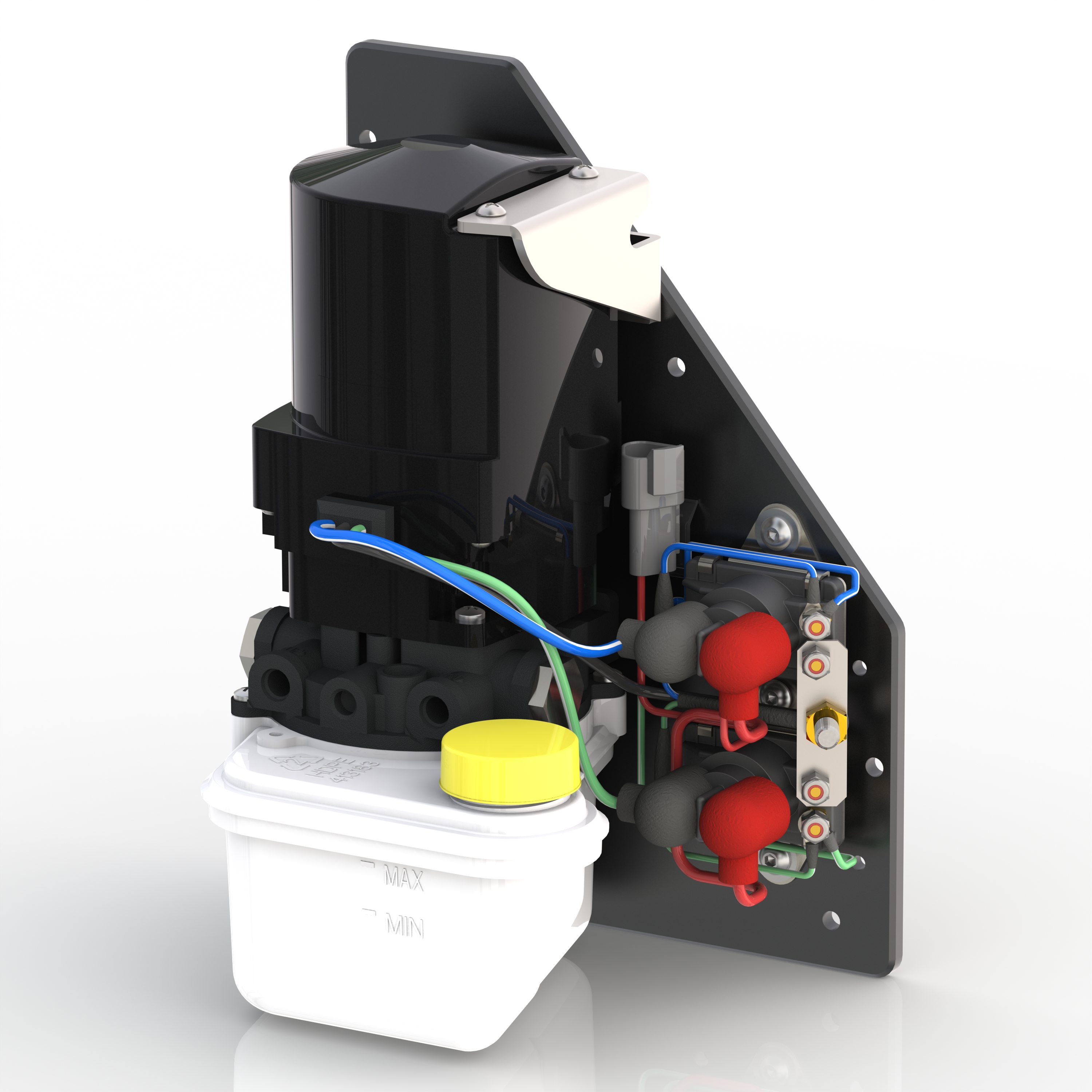

12V Parker Pump

LED Postion Indicators

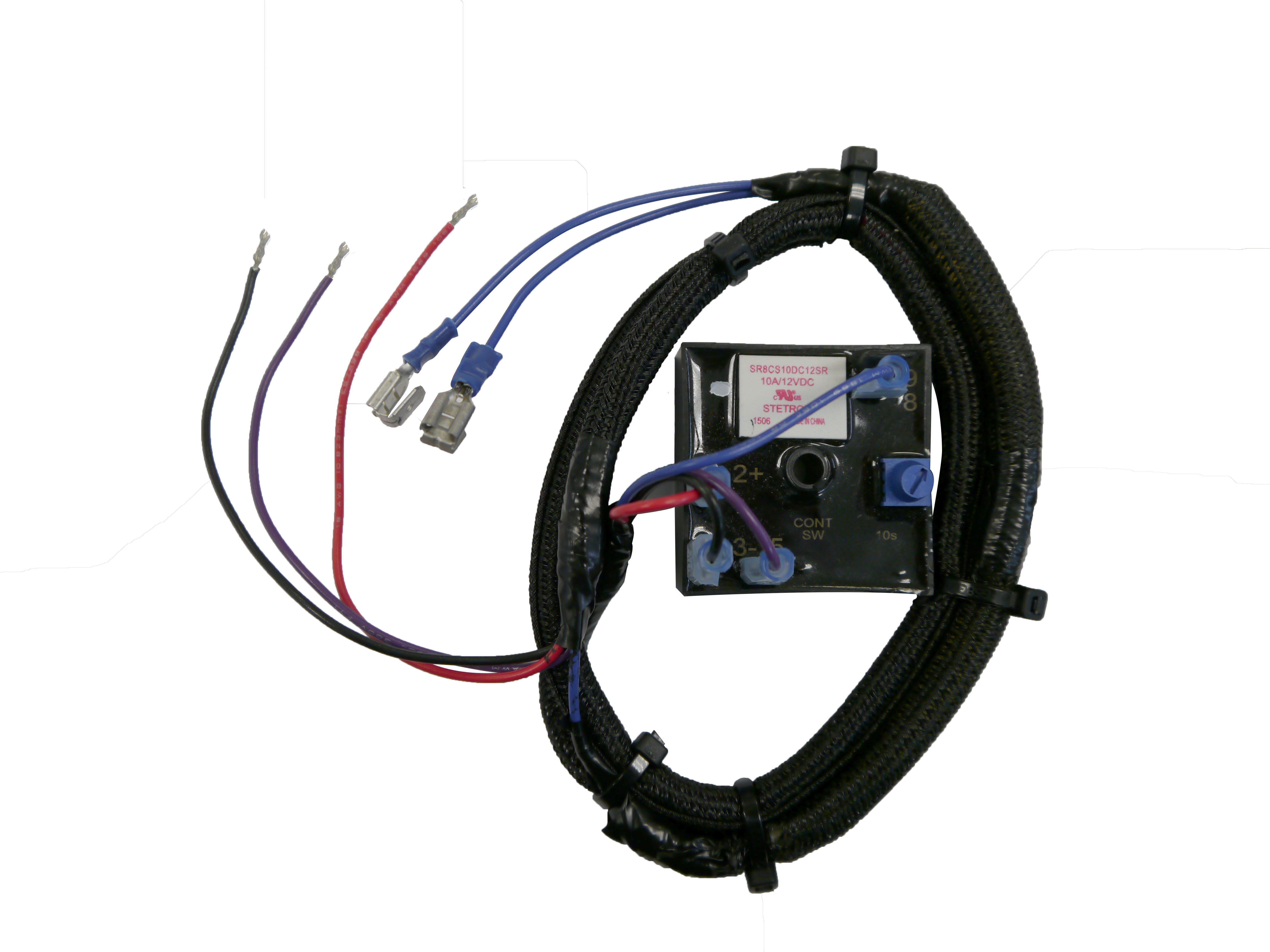

Auto Retract for Tabs

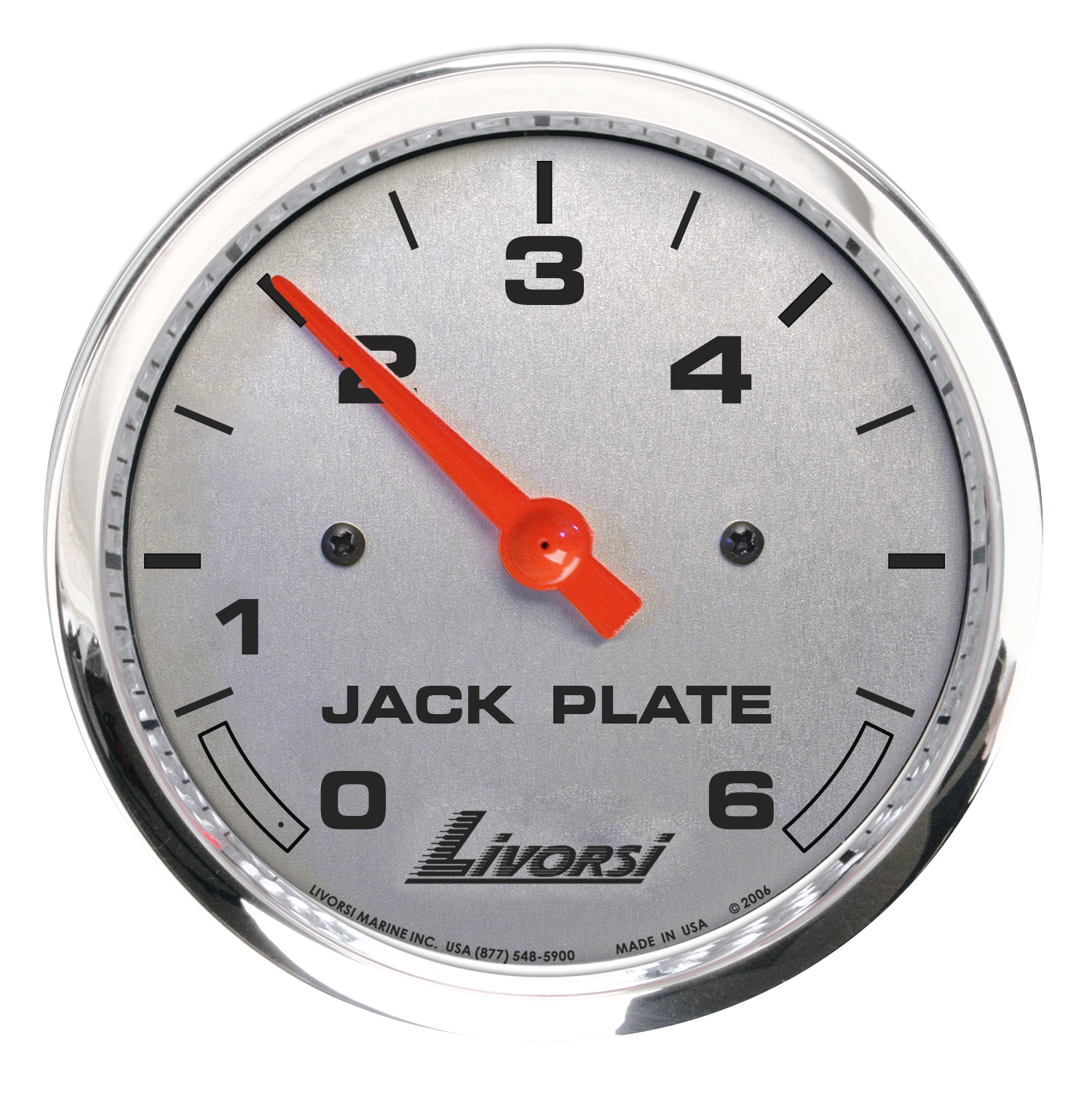

Jack Plate - Tabs - Drives Gauge
