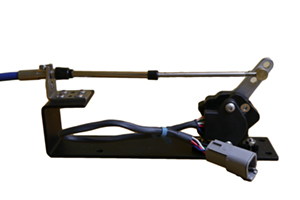

Mechanical to Electric Converter, 0-5 Volts
Part Number: CBME5V-2

  • Enjoy all the benefits of an electric control or position indicator.
  • Converts a mechanical 33C cable signal to an electric voltage or PWM signal
  • Obtain all the benefits of an electric control or position indication by converting the following:
    - Mechanical Throttle Controls
    - LED Indications for Tabs or Drives
    - Jet Pumps or Bucket Position
    - Rudder Position
  • The converter operates using non-contacting magnetic position sensors
    with two independent outputs, rated IP68. Can be submerged in water.
  • Potentiometers may be calibrated to any voltage ranging from .5V to 4.5V or a PWM signal
  • Easy installation: bolts to the inside of the transom with a short 33C
    cable to your device
  • Choose the connector for your application Standard is 6 pin deutch - choose between single or dual potentiometer pott. Specify engine and calibration.
    - Steyr
    - Cummins
    - Iveco
    - Fiat
    - Caterpillar
    - Yanmar
    - John Deere
    - Bosch controllers
Electric to Mechanical Converter
Description Part Number
Converter 5V CBME5V-2
33C cable 2 ft CA2
33C cable 3 ft CA3
33C cable 4 ft CA4
33C cable 6 ft CA6

Click here to view the information sheet
