LED Position Indicators

Browse All

Smarter Feedback. Cleaner Dash. Better Boating.

Take the guesswork out of trim, tabs, rudder angle, jack plates, and tank levels with Livorsi’s Adjustable LED Position Indicators—your all-in-one solution for precise, real-time monitoring on the water.

Precision Where It Matters

Livorsi’s LED indicators are designed for serious boaters who demand accuracy and visibility. These digital indicators eliminate clunky mechanical cables in favor of sealed, solid-state electronics that deliver reliable data with zero loss of motion. Whether you’re dialing in your drives, checking your tab angles, or keeping an eye on fluid levels, these indicators deliver sharp, high-resolution feedback that’s easy to read—even in direct sunlight and with polarized sunglasses.

LED Position Indicators

Key Benefits

  • Plug-and-Play Simplicity: Installs easily with Deutsch connectors—no complex rigging; all calibration is done electronically via photo sensor
  • Direct ECM Communication: Compatible with NMEA 2000® networks and Mercury SmartCraft® via gateway

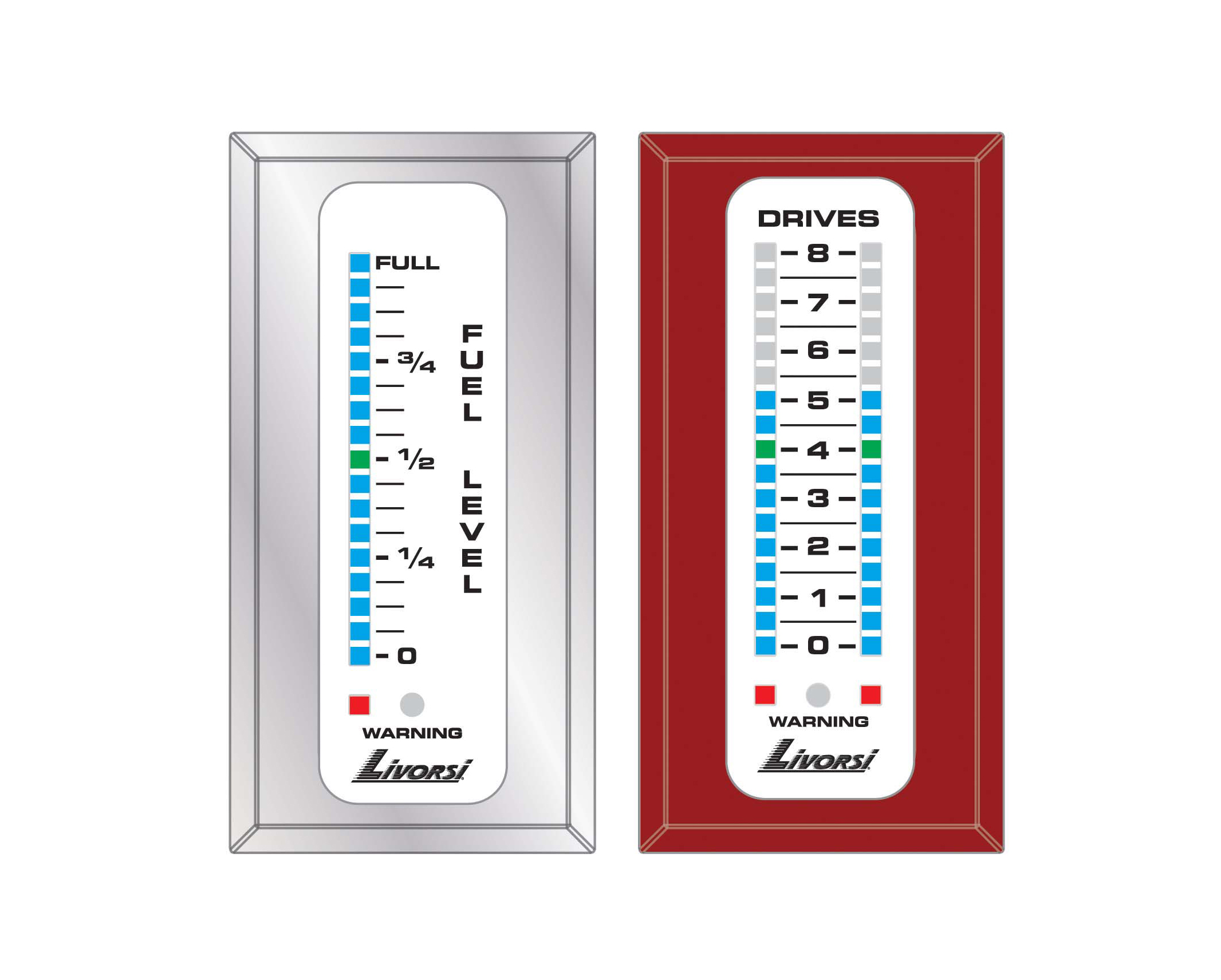

  • Customizable Display: Choose between single LED or fill bar LED readouts, with up to four function slots in vertical or horizontal layouts
  • Precision Calibration: Fine-tune your optimal running angle using onboard adjustments—perfect for dialing in optimal performance
  • Dual Function Photocell: Automatically adjusts brightness through 250 levels for any lighting conditions
  • Optimal Running Angle & Warning LEDs: Set your optimal running angle to be in the “green zone” for peak performance. System includes optional warning indication – just add your sensor (not included) to monitor various functions, like temperature, fuel level, trim or any sensor that will make a ground or 12 volt connection. Bottom-position red LED can be configured as a warning light

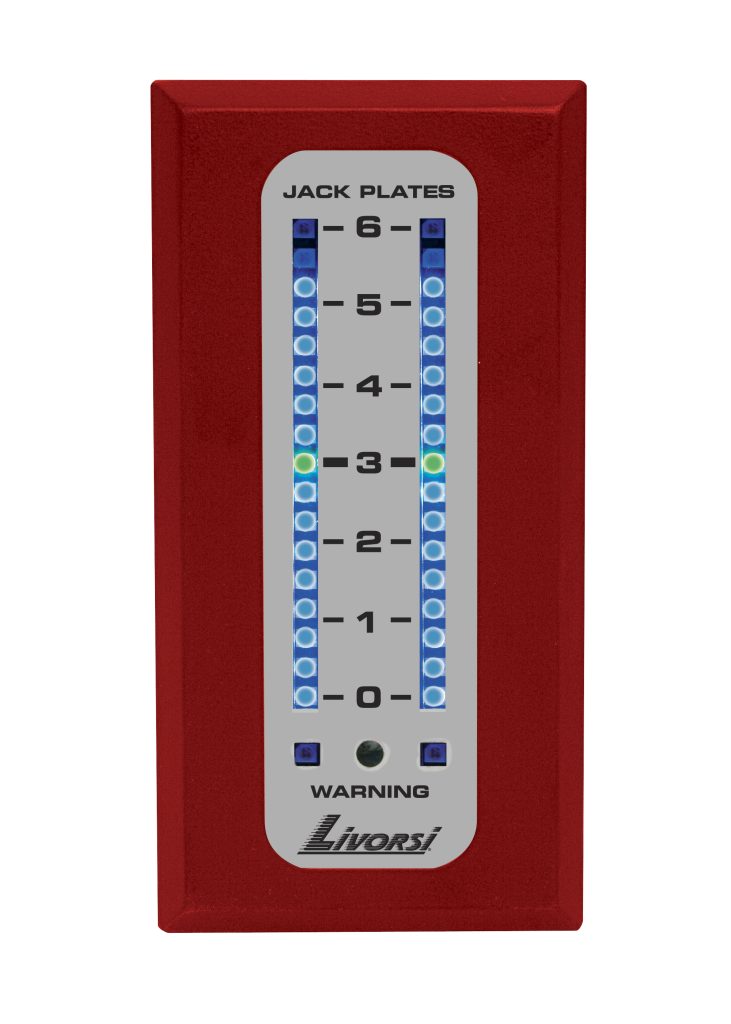

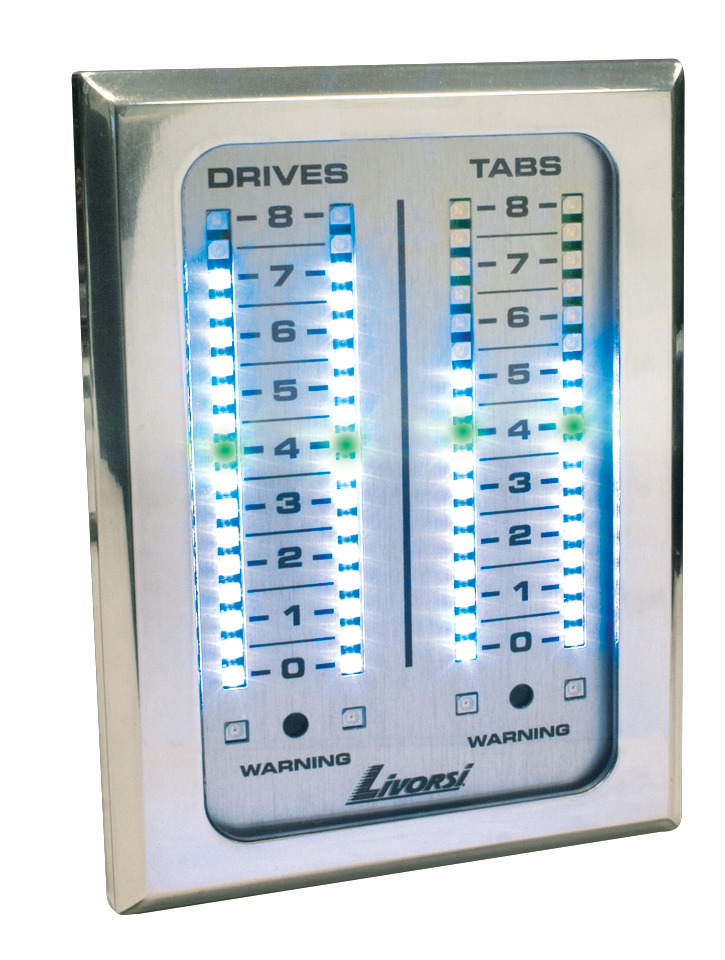

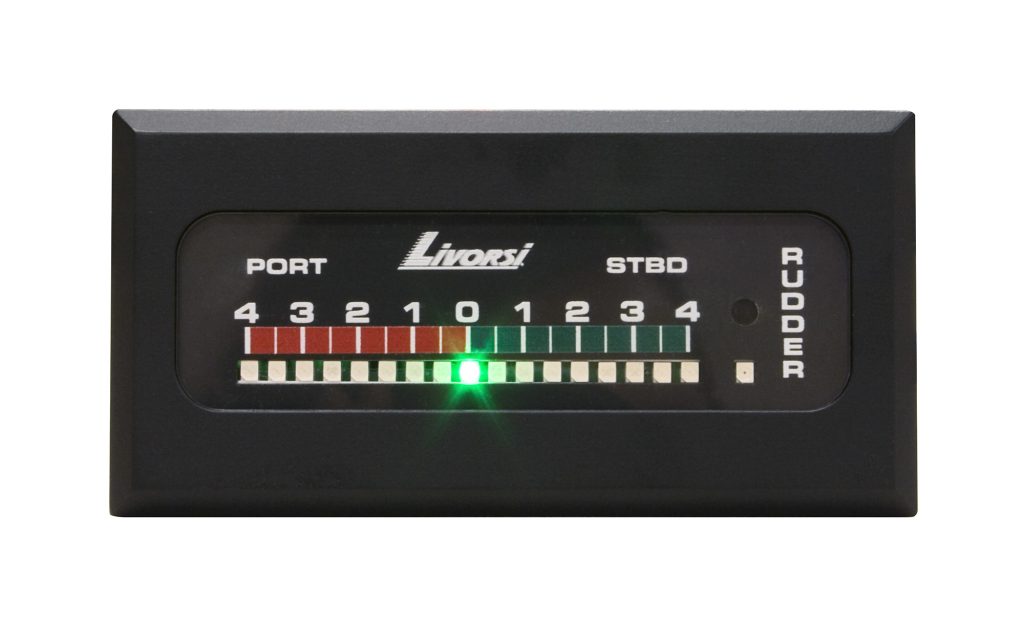

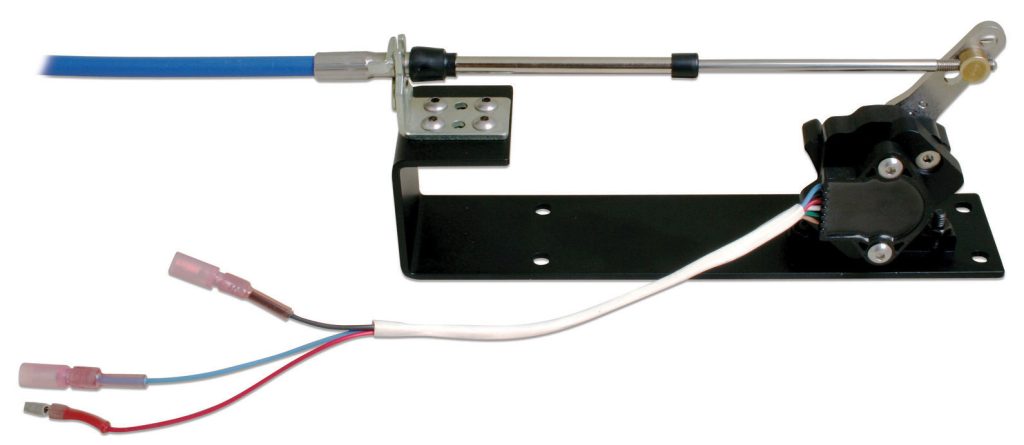

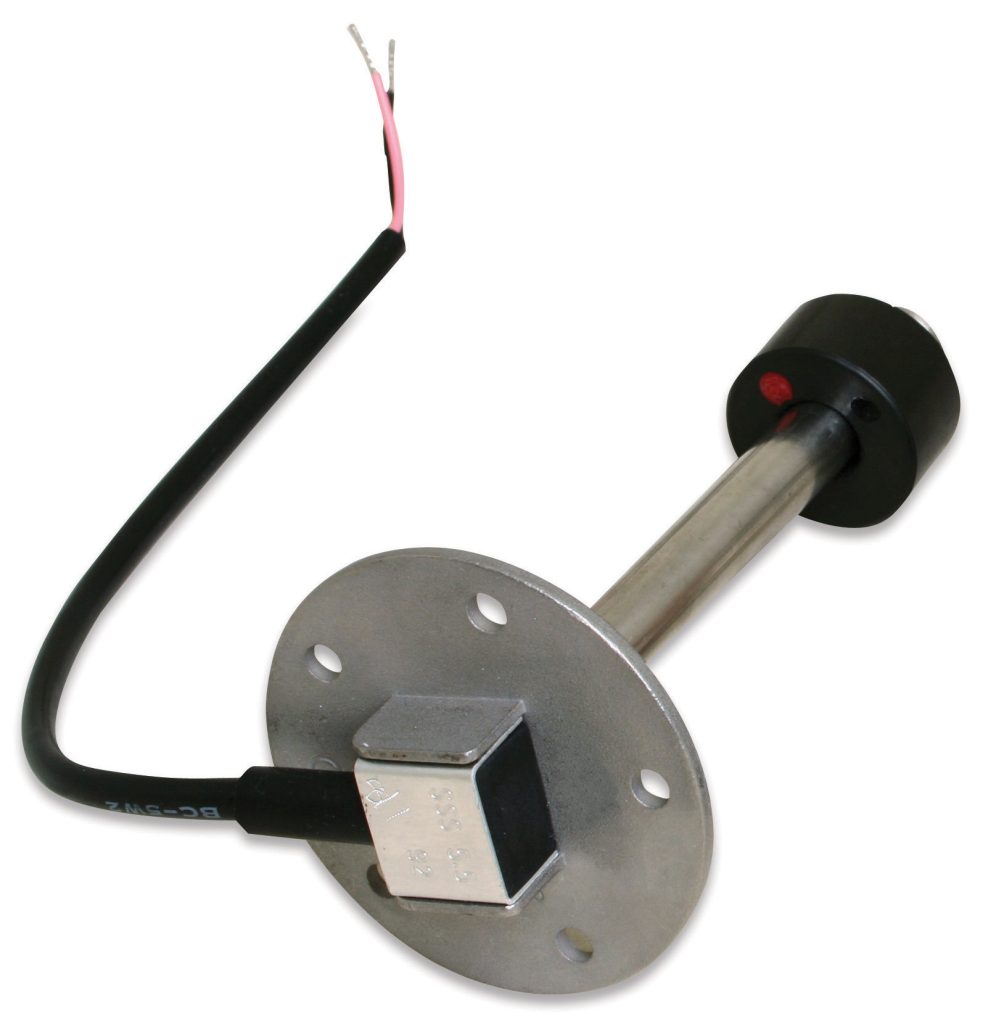

LED position indicator fuel sender LED position indicator - lit up mechanical converter for LED position indicators rudder position - LED indicator

Versatile Applications

Use Livorsi’s LED indicators for:

  • Trim Tabs & Drives
  • Rudders & Jack Plates
  • Fuel, Oil, Fresh Water, and Waste Tanks
  • Can read any resistive or voltage sending device (sensor) with NMEA 2000® (N2K) capabilities

With compatibility for both voltage and resistive (ohm) senders, plus mechanical-to-electric converters, this system fits nearly any setup on the water today.

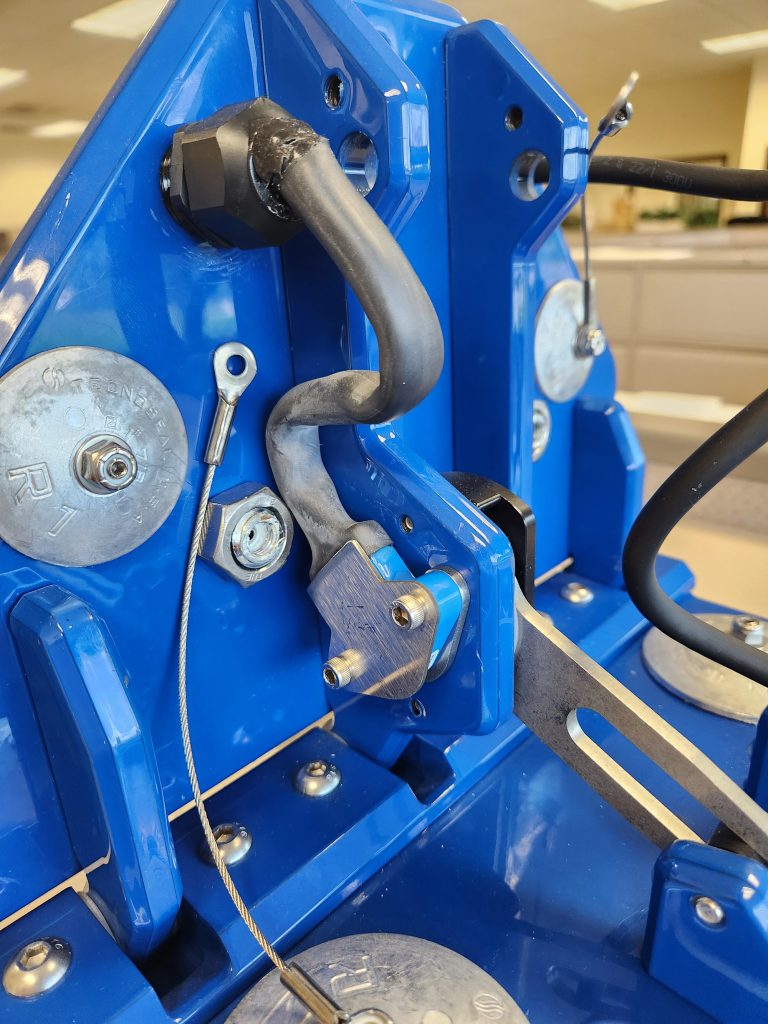

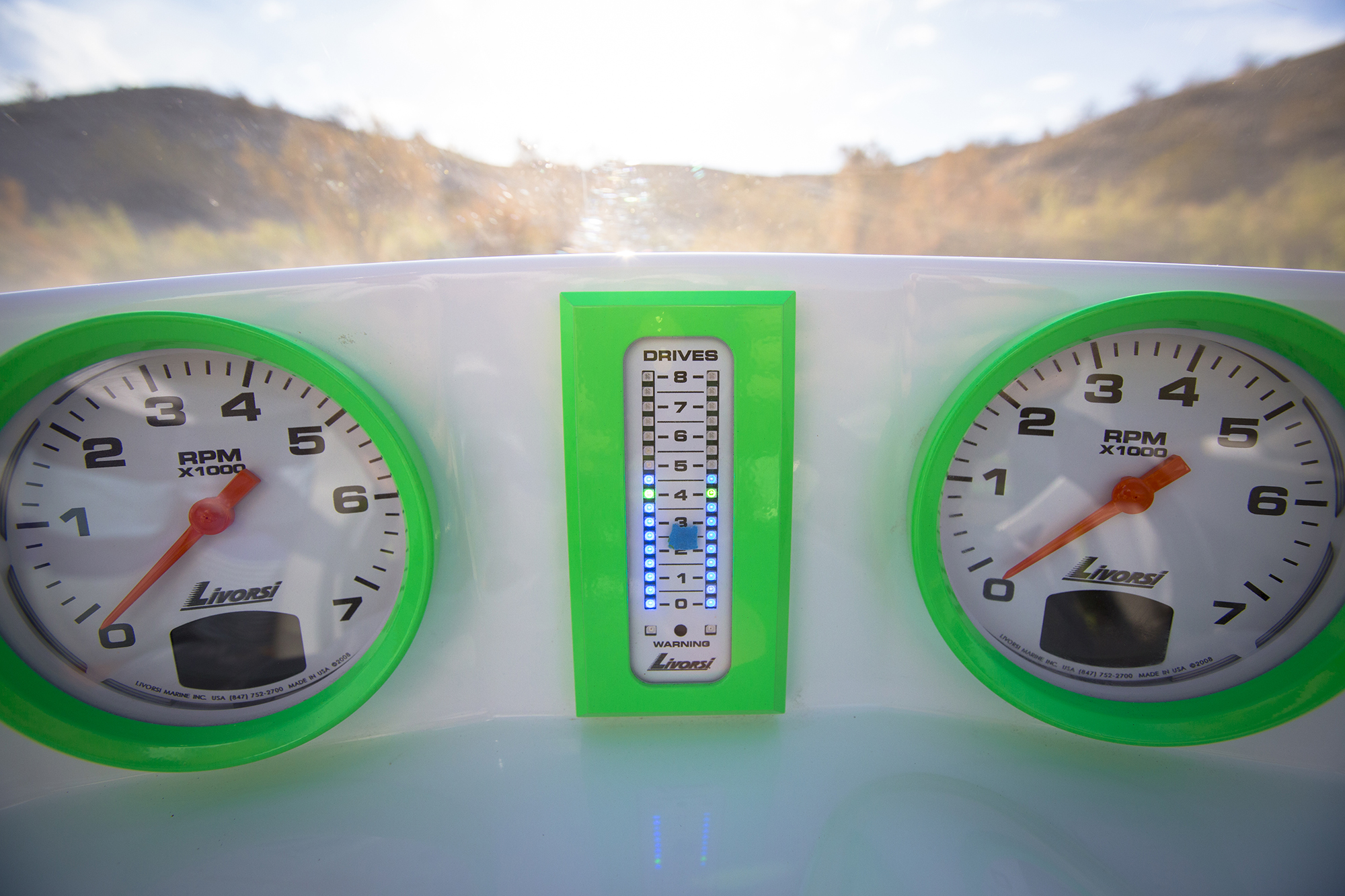

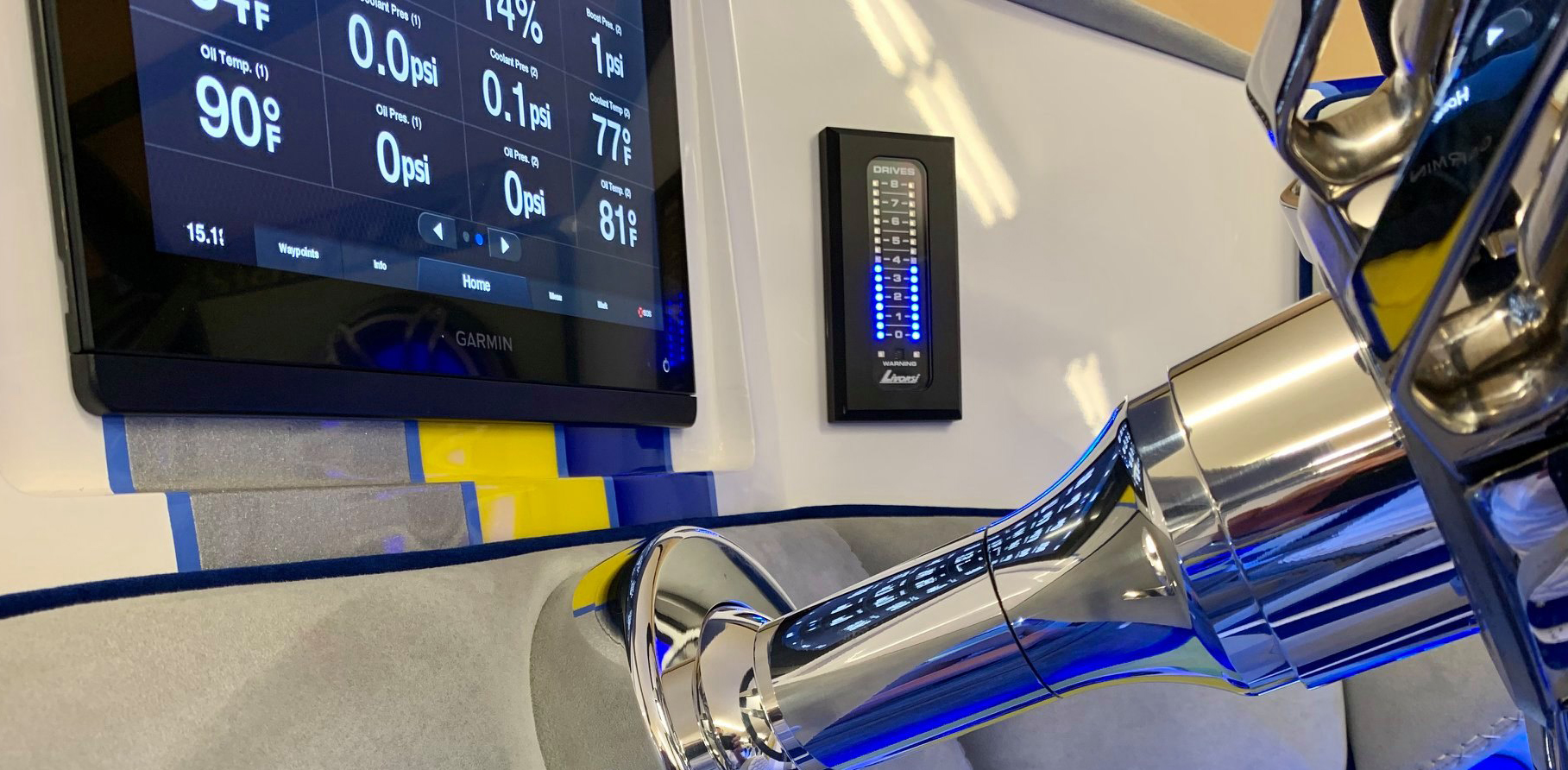

LED position indicators installed

Tailored for Your Boat

Available in a range of faceplate and frame colors—including Carbon Fiber, Chrome, White, Black, Red, and more—to match your Livorsi gauges and boat aesthetics. Choose from 1- to 4-slot configurations based on your needs, with vertical or horizontal layouts to complement your dash design.

Sizes & Mounting

  • 1–2 Slot Indicator: 2 5/8” W × 5 3/16” H
  • 3–4 Slot Indicator: 4 1/16” W × 5 7/16” H
  • Requires two or four 1-1/4″ cutouts depending on two or four slot frame

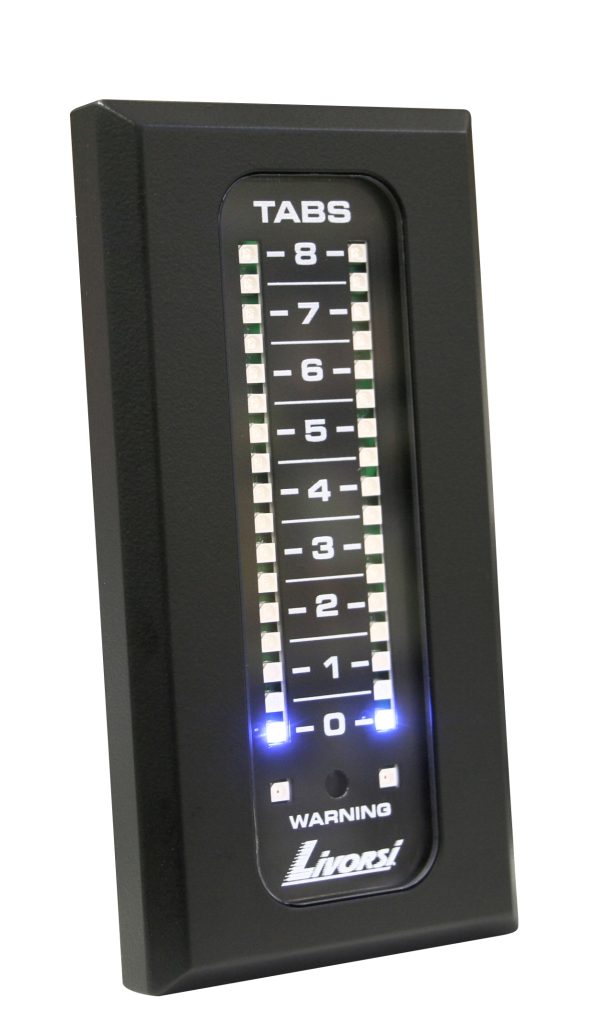

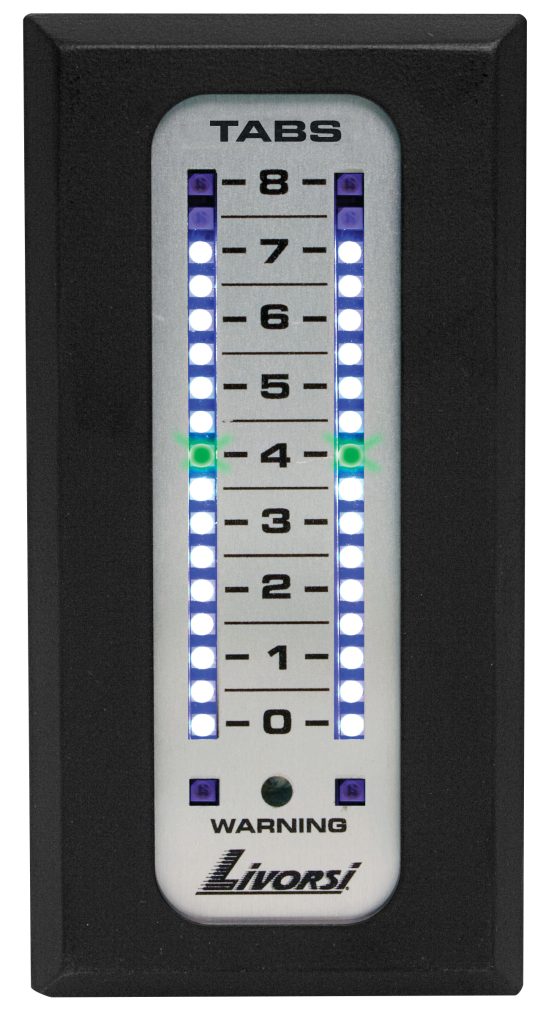

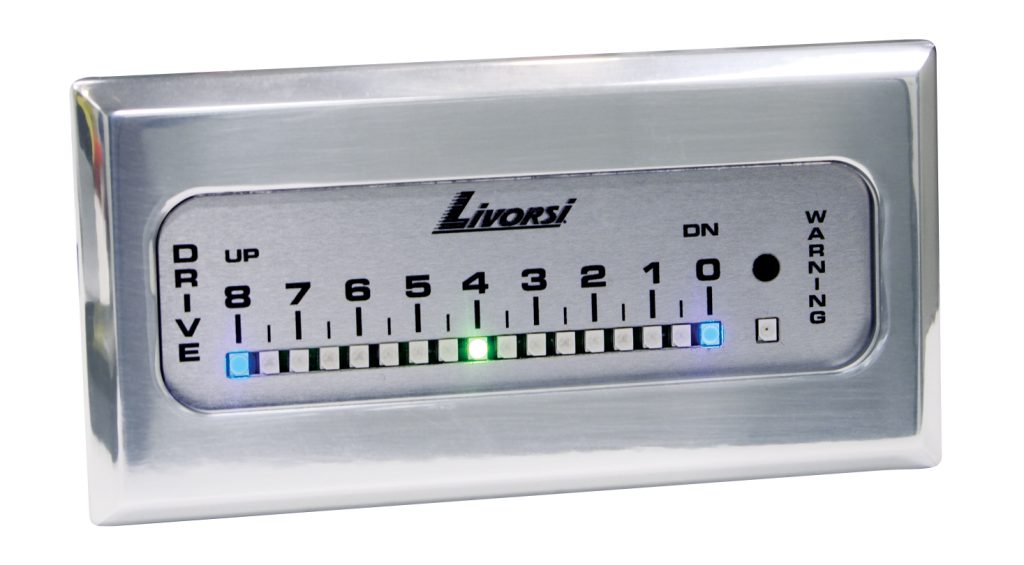

LED indicators LED indicators

Add-Ons & Accessories

  • Mechanical-to-electric converters
  • Trim tab and drive sensors
  • NMMA / ABYC compliant harnessing
  • NMEA 2000® compliant harnessing
  • Custom harnesses available
Shop NMEA 2000 Hardware

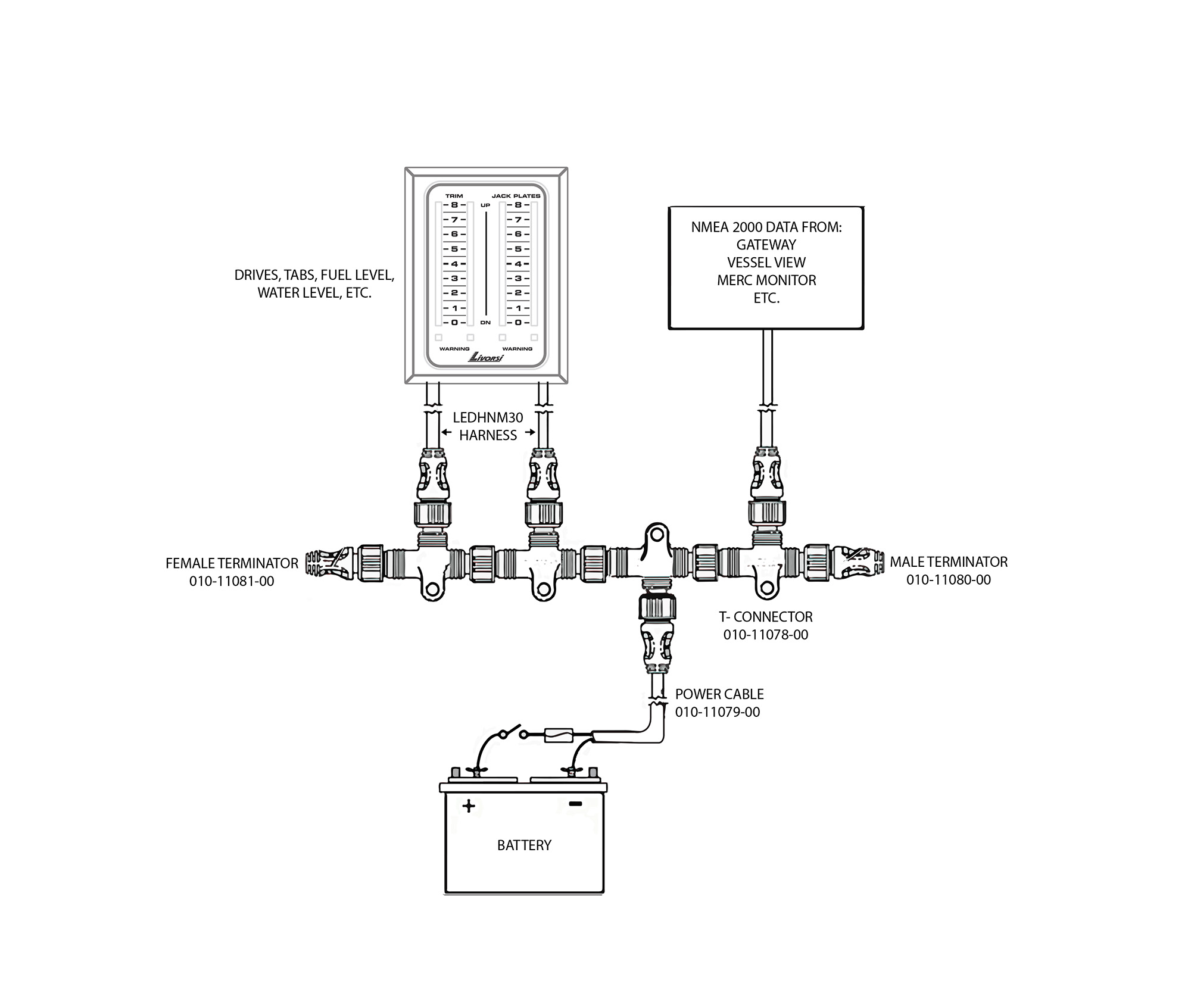

LED position indicators network diagram

How to order?

These highly complex indicators come with many options. To ensure you get an indicator compatible with your equipment, please either contact our customer service team during normal business hours to place an order – or choose an LED position indicator below, and submit as a quote request. We will then send you a detailed quote.
