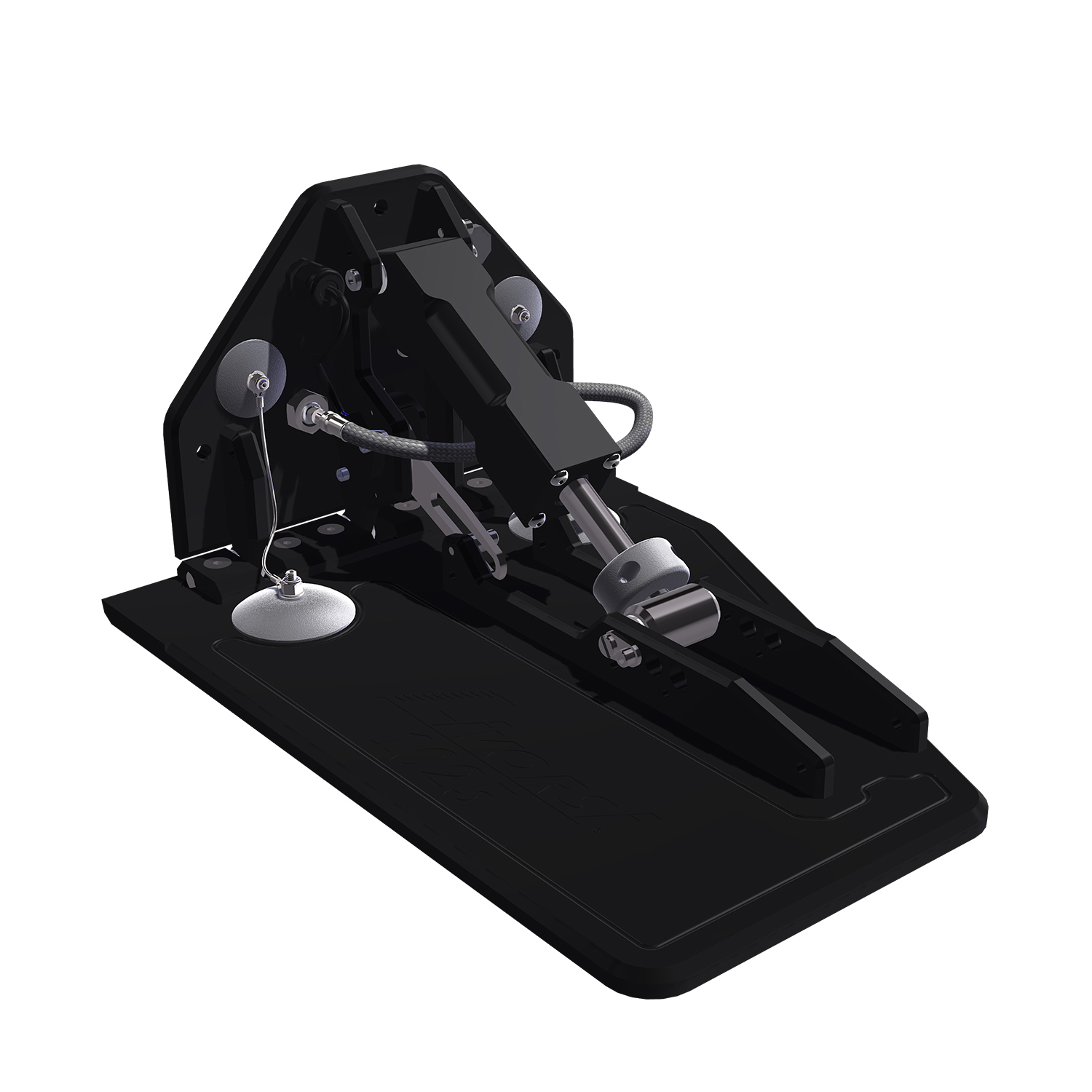

Livorsi 1050 trim tab kit with 12″ transom plate and electric indication – TTK1050EL

Maximize your boat’s performance with the Livorsi Marine 1050EL Hydraulic Trim Tab, engineered for serious attitude adjustment in compact transom spaces.

The 1050EL features a compact transom plate measuring 12″ wide and 8 ¼” tall, paired with a 22″ long running plate, providing 235 square inches of total surface area. This space-efficient design allows for installation in tight areas while still delivering optimal stability and control.

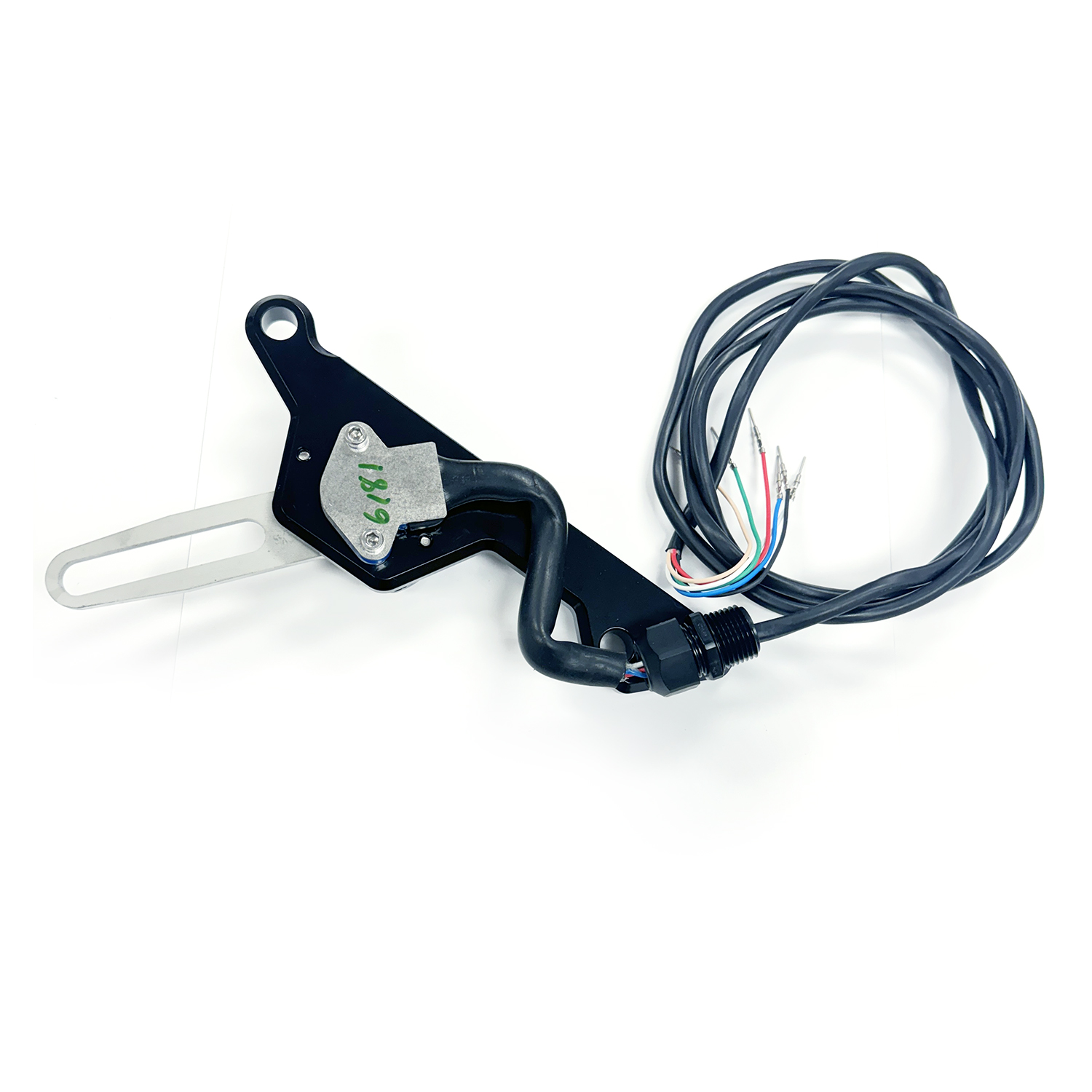

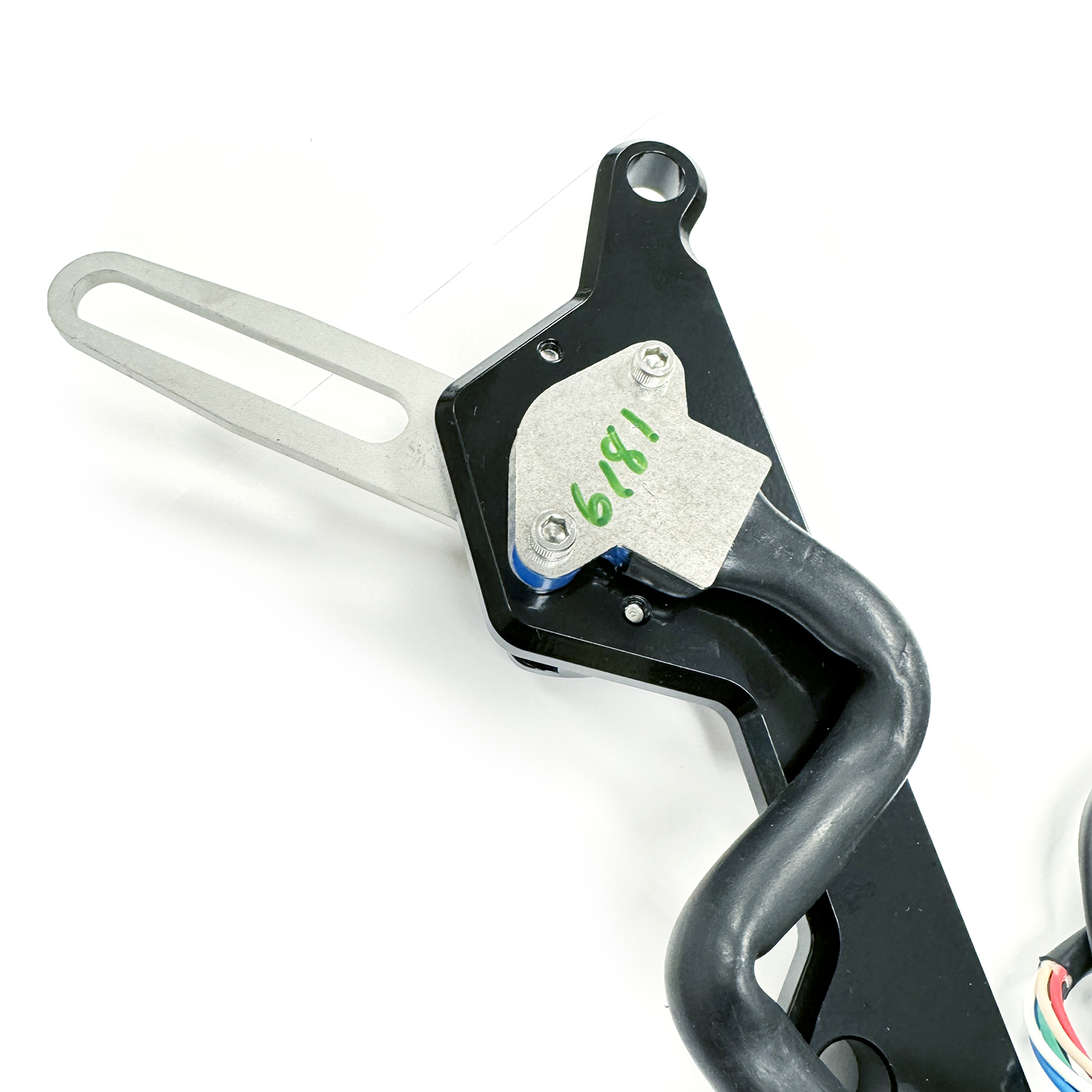

For precise position tracking, the 1050EL integrates the Livorsi Velocity Position Sensor, ensuring real-time feedback to your Livorsi LED tab indicator.

Crafted for durability in harsh marine environments, all Livorsi tabs are CNC-machined from billet aluminum, hard anodized, and powder-coated black for superior saltwater corrosion resistance. Looking for a custom look? Choose from 9 standard Livorsi colors (available at an additional cost).

Kit Includes:
• Parker Hannifin 12V hydraulic pumps
• Fully assembled trim tab assemblies
• Installation hardware kit (TTFAST)

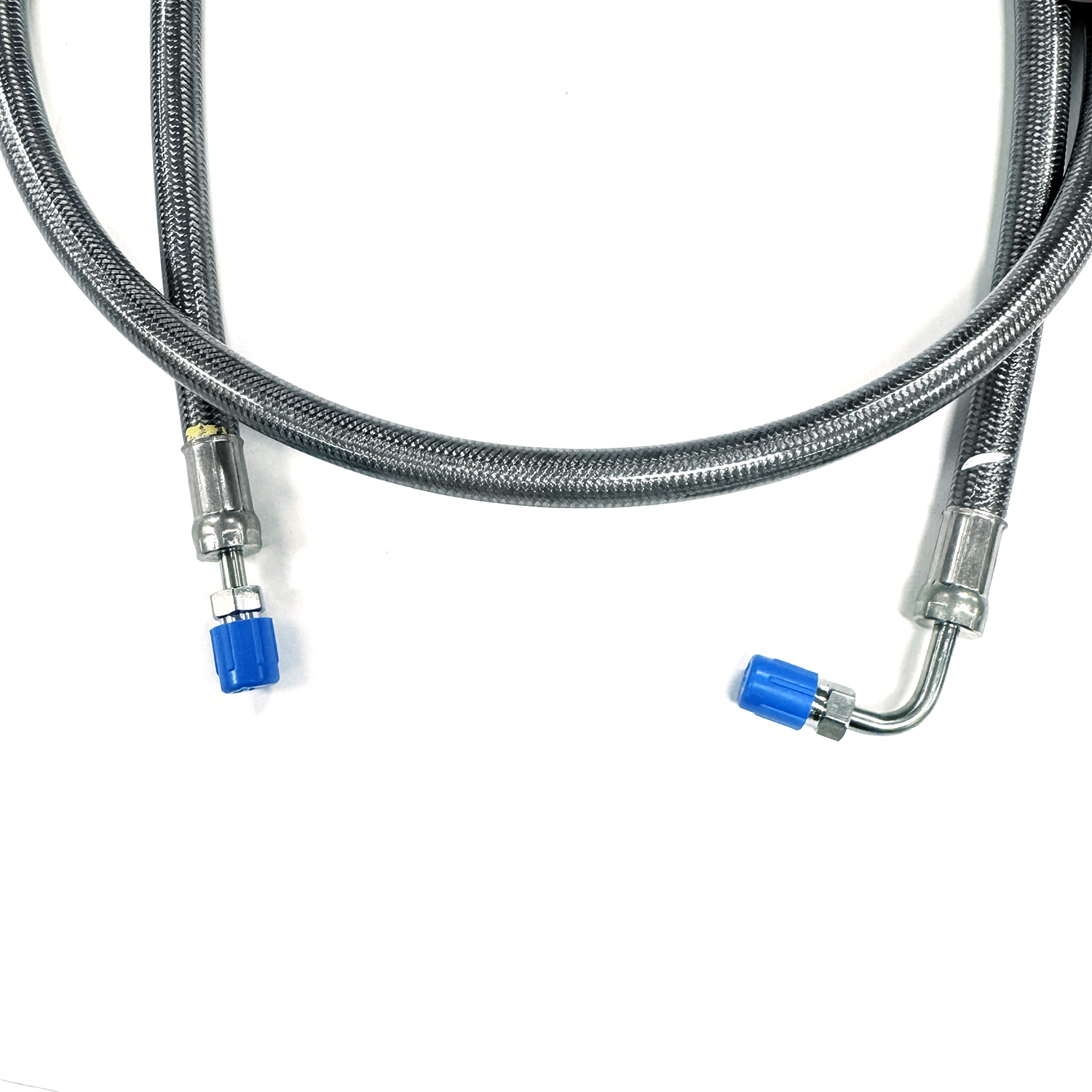

Note: Hydraulic lines from the bulkhead fittings to the Parker pump are sold separately and are available in multiple lengths.

Upgrade your boat with the Livorsi Marine 1050EL Hydraulic Trim Tab—built for precision, power, and performance in tight transom spaces!
