LED Position Indicators

Building Your Indicator Part Number

These documents are designed to help you build your part number and to choose the correct harnesses for your application.

 LED Indicator, Building your part number
Color Options
Size Chart
Number of Slots Overall Size
1 - 2 slot indicator 2 1/4 in W x 5 3/16 in H
3 - 4 slot indicator 4 1/16 in W x 5 7/16 in H

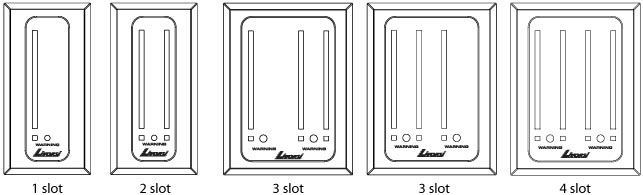

Vertical Layout Examples
 Led Indicators- vertical layout examples

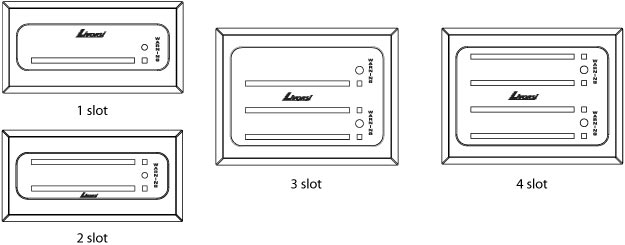

Horizontal Layout Examples
 Led Indicators- horizontal layout examples
Next >>Harnesses and Sensors
